Parts


Formula 1 Suspension & Steering


Quick Change - Damper Bump Stops

These are ideal for quick set up changes and avoiding the grounding of the car.

Ex-Benetton and manufacured in high grade plastic.

Available in the following thickness range - 0.125", 0.250", 0.375" & 0.500" (3.175mm, 6.35mm, 9.525mm & 12.7mm)

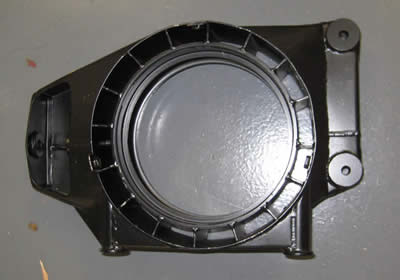

Benetton Front Upright

Believed to be from 1984,1985,1986, 1988 or 1989

B184, B185, B186, B188 or B189

Part of our 1987 / B187 spares package but we can confirm they are not for this.

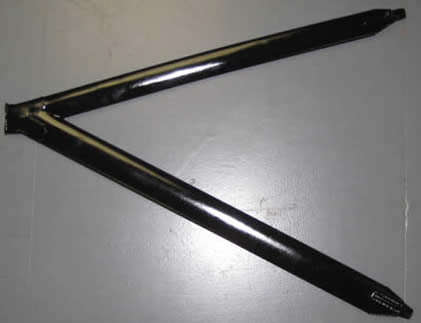

Formula 1 or F5000 wishbones - Believed to be 70's, 80's or 90'sera

These wishbones are part of our stock but we have yet to identify the car they are from.

They are designed to have a spherical housing bolted to the outer.
One leg is waisted at the outer which would appear to be wheel clearance.

2 x 1 side and 1 x the opposite hand.

The wishbone branches measure approx 740mm and 770mm respectively

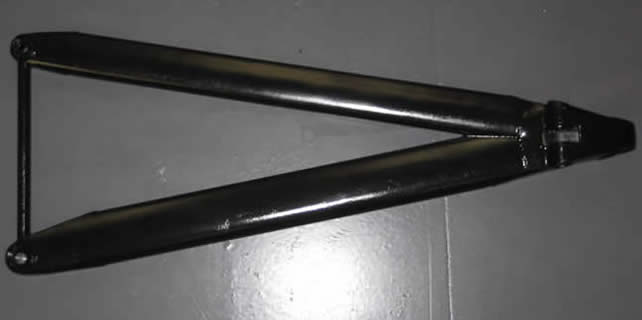

Formula 1 or F5000 Front wishbone

Believed to be 70's, 80's or 90's era

This wishbone are part of our stock but we have yet to identify the car they are from.

It is designed to have a spherical housing bolted to the outer.
Looks to be manufactured in the same way as the 3 x wishbones above so could be from the same car.

The wishbone branches measure approx 704mm and 720mm respectively



Formula 1 or F5000 Front wishbones

Believed to be 70's, 80's or 90'sera

These wishbones are part of our stock but we have yet to identify the car they are from.

They are designed to have a spherical housing bolted to the outer.
One leg is waisted at the outer which would appear to be wheel clearance.

1xLH and 1xRH available

The wishbone branches measure approx 750mm and 760mm respectively




Formula 1/ F3000 Rear Lower Wishbone

Believed to be from 1980s or 1990's

The wishbone branches measure approx 485mm and 560mm respectively

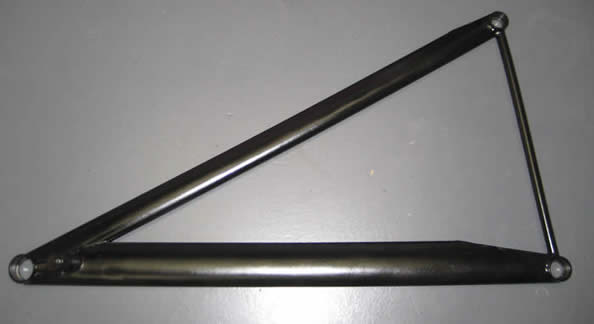

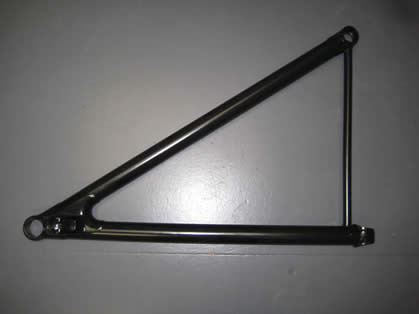

Formula 1 or F5000 wishbone - Believed to be 70's, 80's or 90s era

This wishbone are part of our stock but we have yet to identify the car they are from.

It is has a spherical bearing mounted vertically at the upright end and

2 x spherical bearings mounted horizontally on the inboard end.

It also has the anti cockpit protrusion bar..
It has a mounting for a pushrod or shocker absorber on the upright end.

The wishbone branches measure approx 570mm each




Benetton Rear Lower RH Wishbone

Believed to be from 1984,1985,1986, 1988 or 1989

B184, B185, B186, B188 or B189

Part of our 1987 / B187 spares package but we can confirm they are not for this.



Formula 1/ F3000 Front Lower Wishbone

Believed to be from 1980s or 1990's

The wishbone branches measure approx 620mm and 650mm respectively
